Awtomatikong pagsagol sa mga nuts nga nagtimbang sa pagpuno sa packaging machine

Automatic doy bag packing solution for 25-500gram nuts

Machine introduction:

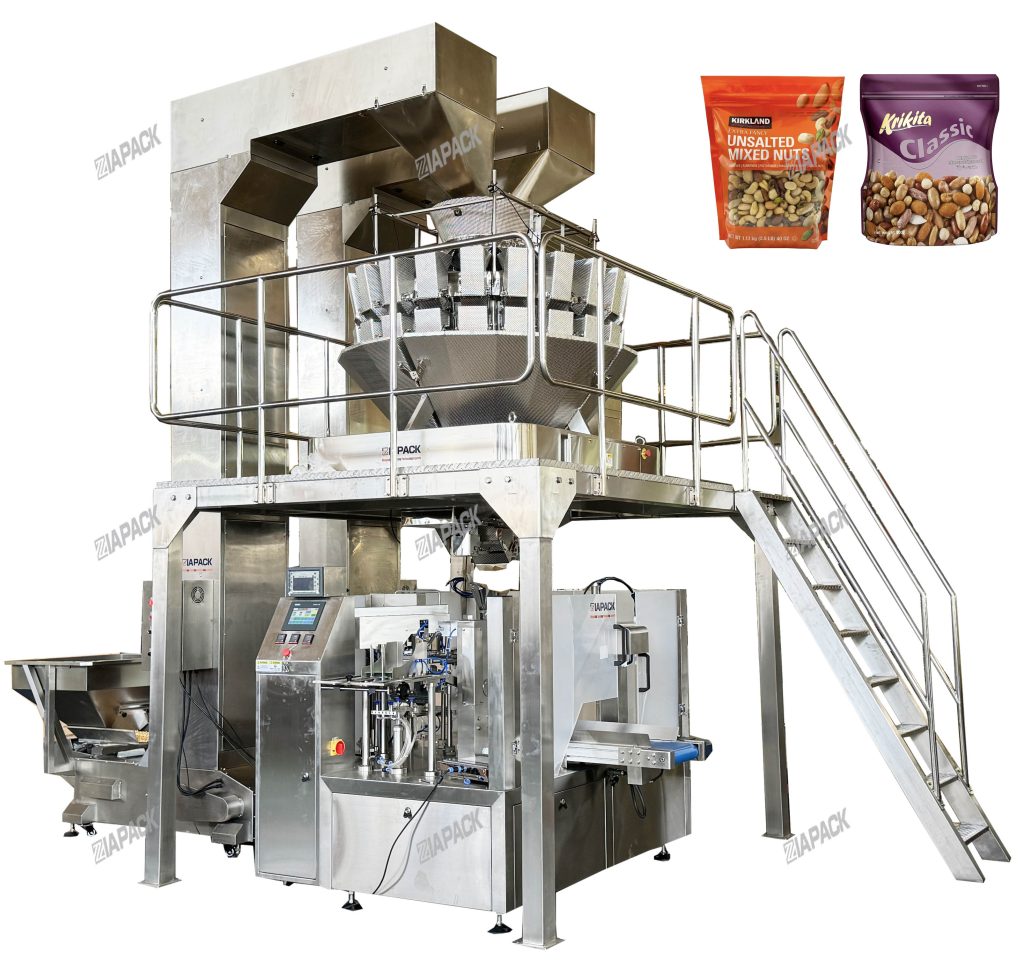

This unit machine including one set ZL20-1.6L multi heads weighing machine for weighing two different product, one set ZL8-230 rotary bag taking opening filling sealing machine, one set DT5 bucket elevator and one set safety platform and ladder. The main machine are control by siemens PLC and operate by touch screen .Adopt famous Electrical accessories. High automation and easy to operate. Widely use by the different industry like Daily chemical, food, chemical, and etc.

Machine details:

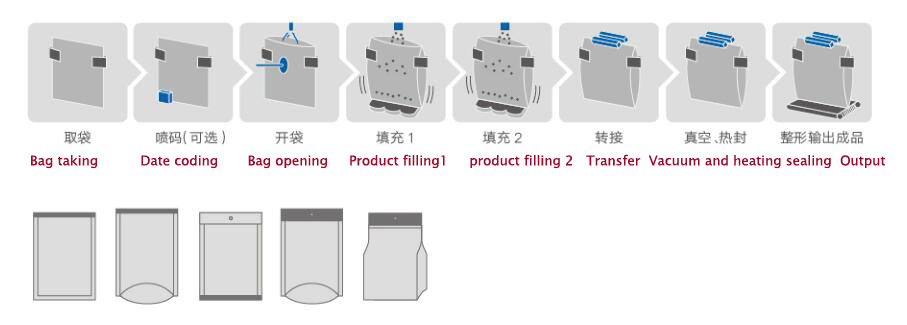

1, Model of ZL8-230 Rotary packing machine（doy packer with zipper)

Function and characteristics

1, Sayon nga operahan, gisagop ang advanced PLC gikan sa Siemens, kapikas nga adunay touch screen ug electric control system, ang interface sa tawo-machine mahigalaon.

2, Ang frequency conversion nag-adjust sa katulin: kini nga makina naggamit sa frequency conversion equipment, mahimong i-adjust sulod sa range sumala sa mga panginahanglan sa realidad sa produksyon

3, Awtomatikong pagsusi: walay pouch o pouch open error, walay pun-on, walay selyo. ang bag mahimong gamiton pag-usab, paglikay sa pag-usik sa mga materyales sa pagputos ug hilaw nga materyales.

4, kahimanan sa kaluwasan: Paghunong sa makina sa abnormal nga presyur sa hangin, alarma sa pagdiskonekta sa heater.

5, Ang gilapdon sa mga bag mahimong ipasibo sa de-koryenteng motor. Pindota ang control-button nga maka-adjust sa gilapdon sa mga clip, daling makaandar, ug makadaginot sa oras.

6, Mahimo kini nga katumbas sa pultahan sa kaluwasan sa bildo. Sa samang higayon, kini makapugong sa abog.

7, Gamita ang plastik nga bearing, dili kinahanglan ibutang sa lana, dili kaayo polusyon.

8, Paggamit walay oil vacuum pump, paglikay sa paghugaw sa palibot sa produksyon.

9、The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

10、Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food

11、With different feeders changed to pack solid, liquid, thick liquid, powder and so on

12、The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on

Preformed bag made by film and paper.

Mga pagtino

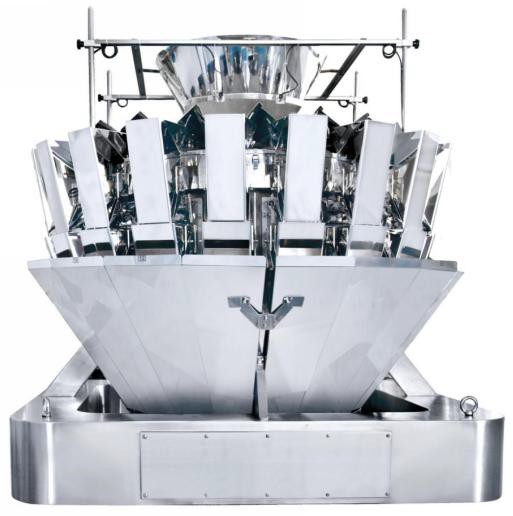

ZL20-2.5L multiheads combination weighing machine

Sakop sa aplikasyon:

It is suitable for high-speed weighing of a single material, formula mixing of multiple materials: the longest material is 60mm, and the single material is less than 60g, such as instant oatmeal and mixed nuts.

Mga Feature:

The High-speed mode can be used for a single material;

The Weight Of the mixture can be compensated by the operation of the last material;

Using High-precision,high-standard special sensors;

Intelligent Fault Alarm prompt, maintenance is more convenient;

High-speed synchronous discharge function, effectively prevent material blockage;

The Highly integrated modular design adopts CAN bus technology;

Modbus industry standard communication protocol, realizes the combination of the combination scale and the packaging machine interface;

Other functions and features of the same generation model;

For Viscous Materials, anti-stick measures such as 60° chassis and Teflon coating can be used.

Mechanical Characteristics And product characteristics:

Separate Upper Hoppers are used for a variety of mixed formula materials;

Adopt independent main vibration machine to control the feeding thickness of different materials respectively;

The Integral Chassis and middle seat enhance the rigidity and strength of the machine, making the weighing more accurate;

The Chassis And chute adopt compatible design. When weighing a single material, it can be replaced with a double-port unloading tray, which can be equipped with a double-packing machine;

The Unified Design standard and the mold making process make the interchangeability of each part stronger.

Thestable Aluminum shell structure makes the hopper run more stably and the readings are more accurate. The integral chassis and the middle seat enhance the strength of the machine, making the hopper's stabilization time shorter;

Pagtino:
