15kg nga kahoy nga pellets vffs bag nga nagporma sa pagpuno sa sealing bagging machine

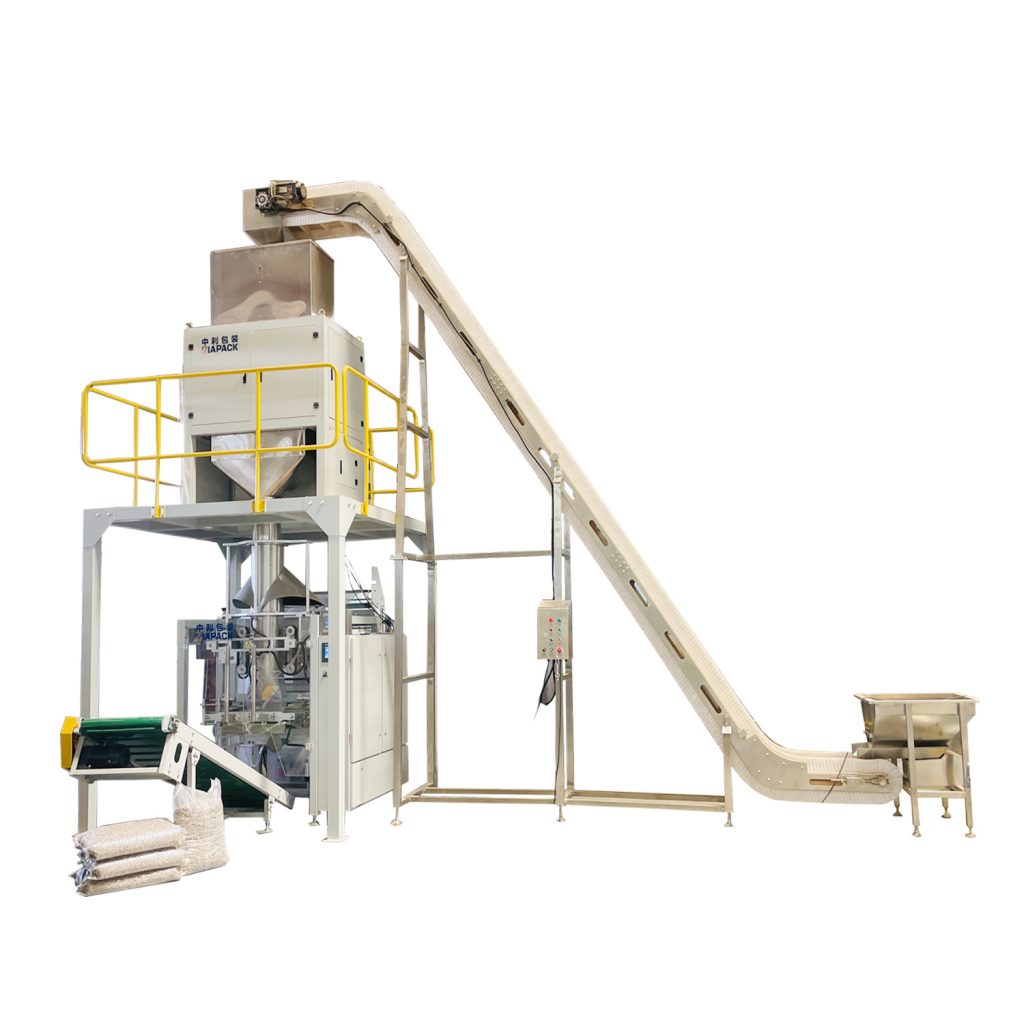

Automatic15-20 kg wooden pellets bag forming filling packaging machine

Pasiuna:

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

Teknikal nga Parameter:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

Kinahanglanon sa compressed hangin: 0.6Mpa 0.65m³/min

Reel outer diameter: 450mm

Core sulod nga diametro: 75mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

Panguna nga Mga Kinaiya ug Kinaiya:

• Usa ka halapad nga mga pouch: Pillow ug Gusset pouch.
• Taas nga tulin: 20-50 bags/min
• Sayon nga operahan: PLC controller ug color touch-screen, fault indication sa touch screen.
• Sayon sa pag-adjust: mga 10 ka minutos lamang aron usbon ang lainlaing pouches.
• Pagkontrol sa kadugangan: ang gikusgon mahimo nga usbaw pinaagi sa frequency conversion sa sulod.
• Hataas nga Automation: wala'y tawo nga natimbang sa proseso sa pag-pack, ang alarma sa makina awtomatik kung mapakyas.
• Kaluwasan ug Kalimpyo:
• Walay pelikula, ang makina mag-alarma.
• Pag-alarma sa makina ug paghunong kon ang dili igo nga presyur sa hangin.
• Ang mga gwardya sa kaluwasan nga adunay mga safety-switch, alarma sa makina ug mohunong sa dihang gibuksan ang mga safety guards.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

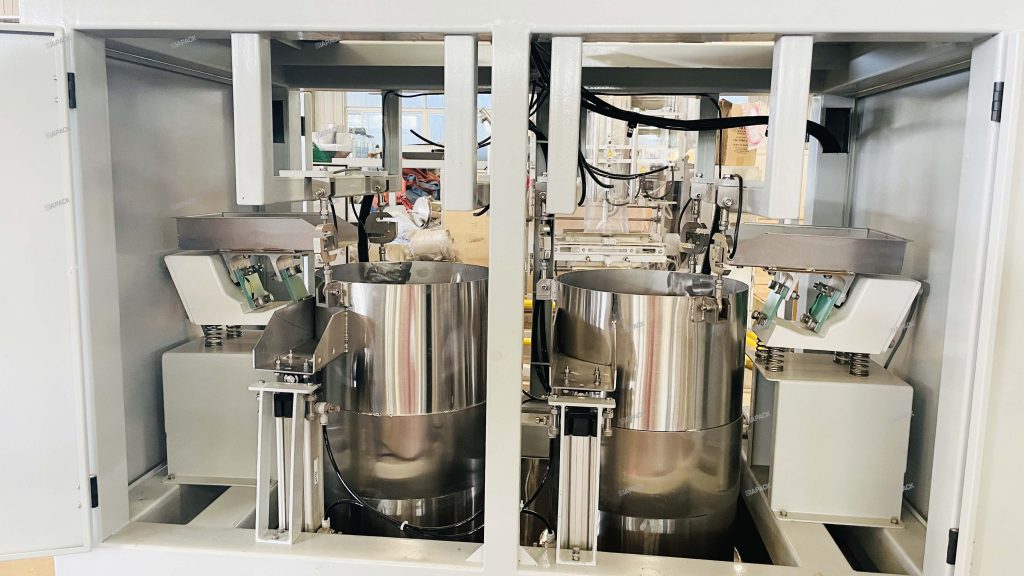

• ZLC2-15k double bucket weighing machine

  Pasiuna:

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  Mga Feature:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
