Awtomatikong frozen nga pagkaon nga nagtimbang sa pagpuno sa packaging machine

Pasiuna:

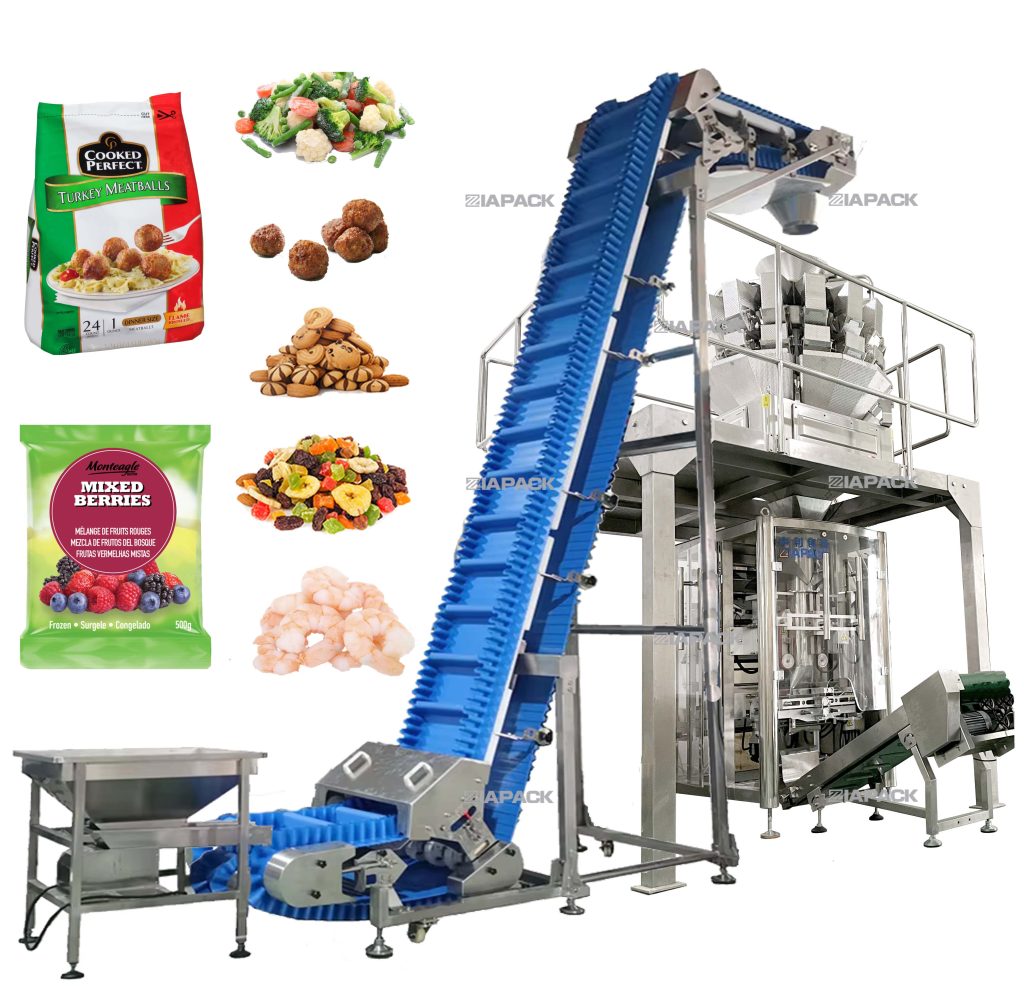

This unit machine is special design for packaging frozen food like shrimp ,meat ball,Chicken pieces dumpling and Toufu in to plastic bag .The whole machine have the function of automatic product feeding ,weighing ,film bag forming ,bag sealing ,Including date coding ,bag counting .The finished bag is output from conveyor machine which no need manual collect the bag and avoid the bag polluting .

Paggamit:

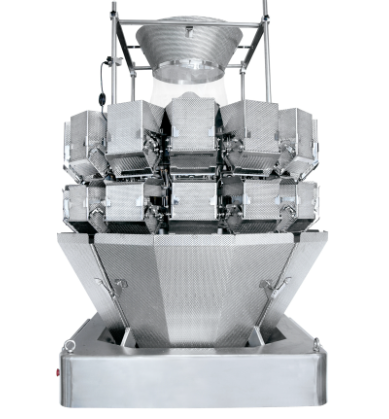

This weighting machine r is suitable for weighing different frozen food  like frozen fishes, fruit, frozen dumplings, rice dumplings, etc.,Adopt Dimple Plate and waterproof electric cabinet .Can Work in an environment with high humidity.

Mga Feature:

1. Special load cell with high precision and high standard.
2. Program recovery function can reduce operation failures, support multi-segment weight calibration.
3. No products auto pause function can improve weighing stability and accuracy.
4. Linear amplitude can be adjusted independently, can make the feeding more uniform.
5. 15 languages available for global markets.
6. 100 programs capacity can meet various weighing requirement, user-friendly help menu in touch screen contributes to easy operation.

Mechanical  Character:

1. Ip65 cabinet design, dimple plate for food contact parts.
2. Air pressure system built in cabinet prevents the electronic components from damage because of humidity.
3. Uniform design standards contribute to better interchangeability for spare parts.
4. The whole cast aluminum thickening machine case enhanced the strength of the machine, and shorten sample stable time.
5. Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

Pagtino:

ZL520 VFFS BAG FORMING FILLING PACKAGING MACHINE

Pasiuna:

Kini nga makina mahimong awtomatik nga makaamgo sa mga gimbuhaton sa paghimo sa bag, pagpuno, pagsilyo, pag-imprinta, pagputol, ug uban pa. Kini nga makina mahimong awtomatik nga makaabot sa bag nga nagporma sa pagpuno ug pagbugkos.

Kini nga packaging machine nagsagop sa import servo motor alang sa film feed ug ang man-machine interface naggamit sa advanced touch screen. Ang operasyon mas simple ug mas sayon.Ang tanan nga mga sangkap nagsagop sa internasyonal nga bantog nga brand, PLC mao ang SIEMENS, servo motor mao ang PANASONIC, touch screen mao ang SIEMENS, silindro ug hangin balbula mao ang SMC. Ang mga bahin nga nakontak sa materyal, control cabinet, main frame gihimo sa stainless steel304

Teknikal nga Parameter:

Katulin sa pag-pack (MAX): 20-50bags / min

Uri sa bag: pillow bag .gusseted bag

Bag size: bag width 60-250mm bag length 80-350mm

Compressed hangin konsumo: 0.6 MPa 350 L/min

Kinahanglanon sa kuryente: 380V/5.5 kW50 Hz
