Pangunang mga bahin

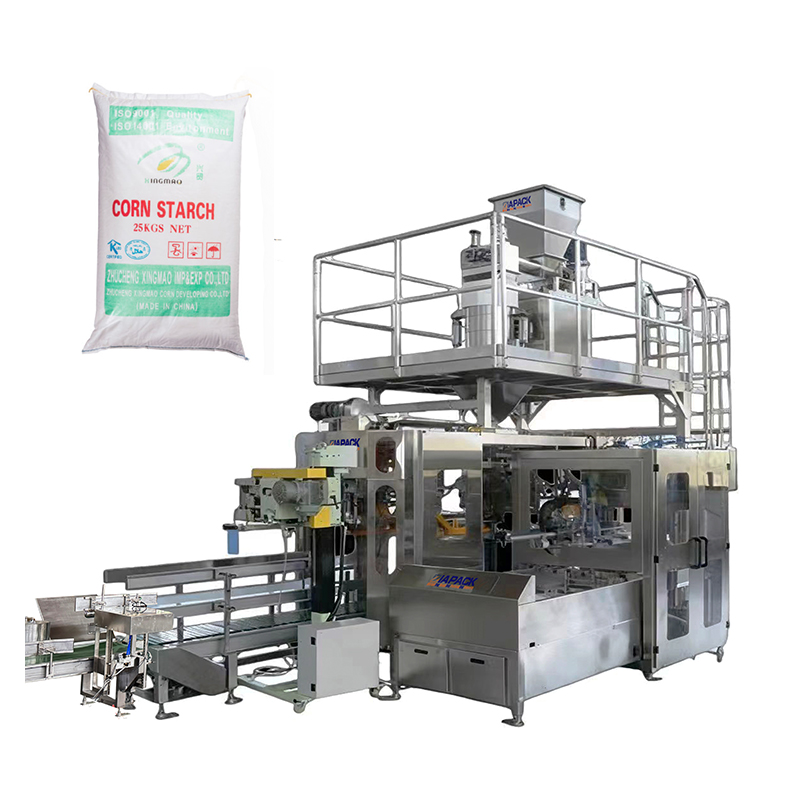

Automatic weighing, automatic bag loading, automatic bag sewing, no manual operation is required; Touch screen interface, simple and intuitive operation; The unit is composed of bag preparation warehouse, bag taking and bag handling device, bag loading manipulator, bag clamping and unloading device, bag holding pushing device, bag opening guiding device, vacuum system and control system;It has a wide adaptability to the packaging bag. The packaging machine adopts the bag picking method, that is, taking the bag from the bag storage, centering the bag, sending the bag forward, positioning the bag mouth, pre opening the bag, inserting the knife of the bag loading manipulator into the bag opening, and clamping the two sides of the bag mouth with air gripper on both sides, and finally loading the bag. This kind of bag loading method does not have high requirements on the size error of the bag manufacturing and the quality of the bag itself Low bag making cost; Compared with the pneumatic manipulator, the servo motor has the advantages of fast speed, smooth bag loading, no impact and long service life;
Duha ka mga micro switch ang gi-install sa pag-abli nga posisyon sa bag clamping device, nga gigamit aron mahibal-an kung ang baba sa bag hingpit nga gi-clamp ug kung ang pag-abli sa bag hingpit nga giablihan. Aron masiguro nga ang makina sa pagputos dili masayop sa paghukom, dili mag-agas sa materyal sa yuta, magpauswag sa kahusayan sa paggamit sa makina sa pagputos ug sa lugar nga nagtrabaho nga palibot;
Ang balbula sa solenoid ug uban pang mga sangkap sa pneumatic gisilyohan nga disenyo, dili gibutyag nga pag-install, mahimong magamit sa abog nga palibot, aron masiguro nga ang kagamitan adunay taas nga kinabuhi.
Teknikal nga mga sumbanan
| Modelo | ZLH50D |
| Mode sa pagpakaon | Double horizontal screw feeding with weighing bucket |
| Pagputol sa timbang | 25kg |
| Pagputol sa katukma | ≤±0.5-1% |
| Pagputol sa gikusgon | 2-4 bags/min |
| Gahum sa kuryente | 3P AC208-415V 50/60Hz |
| Kabilugan nga gahum | 5kw |
| Na-compress nga hangin | 6kg/cm2 0.3cm3/min |
