Pasiuna:

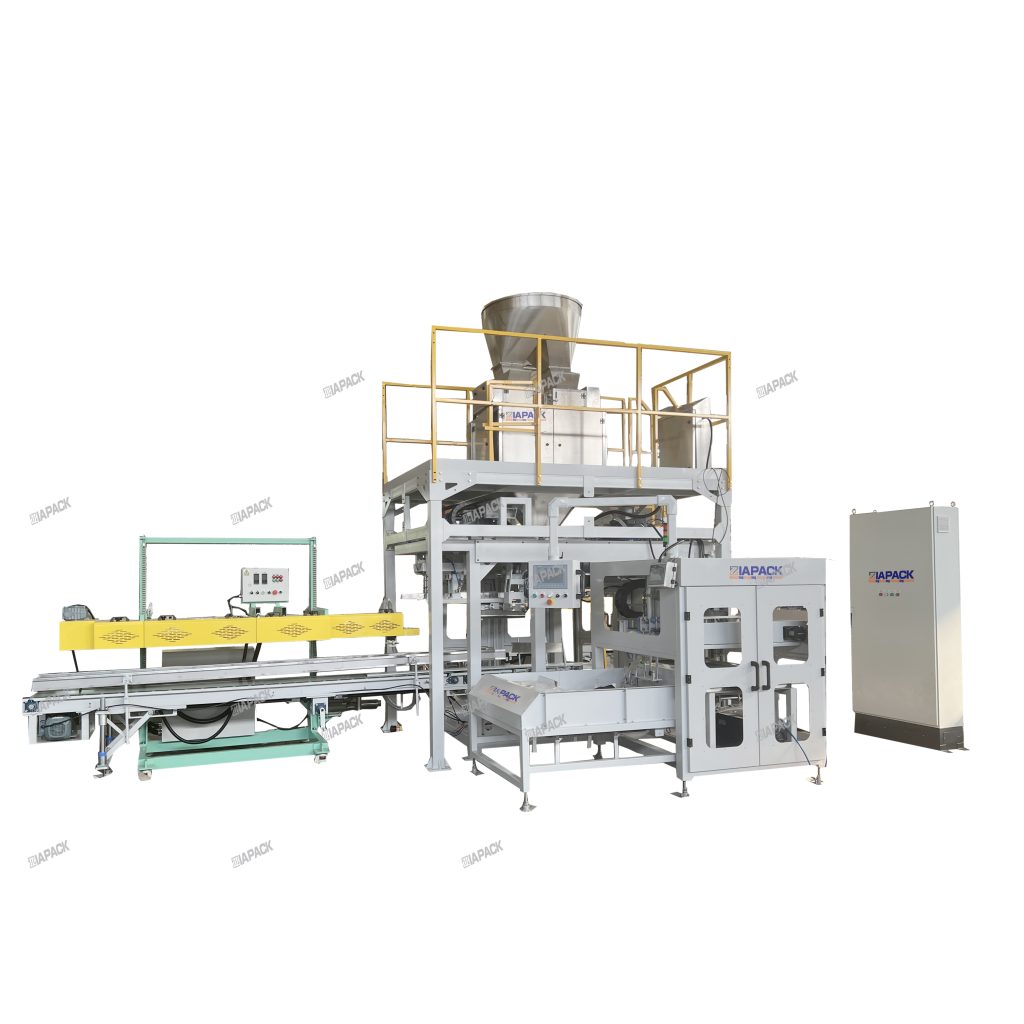

This line is special design for automatic weighing filling bagging of 25kg small granule like rice bean sugar salt plastic granule fertilizer and animal food .According the client requirement we also need offer the automatic weight check ,metal detector and palletizing.The seller completed the design, manufacturing and supply of the production line in strict accordance with the technical requirements and combined with its own packaging line design experience in the sugar industry.
ZL25K-S Automatic double buckets gravity scale system
Principle :
This scales are composed of mechanical components and sensors of the weighing system and a weighing control instrument system. The combined cylinder controls the feeding accuracy. Materials are fed from the dividing hopper and enter the feeding mechanism through the flow adjustment valve, and then enter the weighing hopper through the feeding door.
| Modelo | Net weight sensor type electronic scale (double scale) |
| Feeding method | Gravity blanking (cylinder driven) |
| Materyal nga | Material contact surface 304 stainless steel, frame protection 304 stainless steel |
| Pag-konsumo sa hangin | ~200NL/min |
| power | ~2.0kw |
| Weighing capacity | ≥600 bags/hour |
| Set weighing value | Net weight 30kg/bag |
| Pagsukod sa katukma | ±0.1% |
| load cell | ZEMIC China |
ZL750 Automatic filling bagging packaging machine
Kini nga yunit naglangkob sa usa ka bag storage bin, bag pagkuha ug sorting device, bag loading robot, bag clamping ug unloading device, bag pushing device, bag mouth guide device, vacuum system ug control system.
